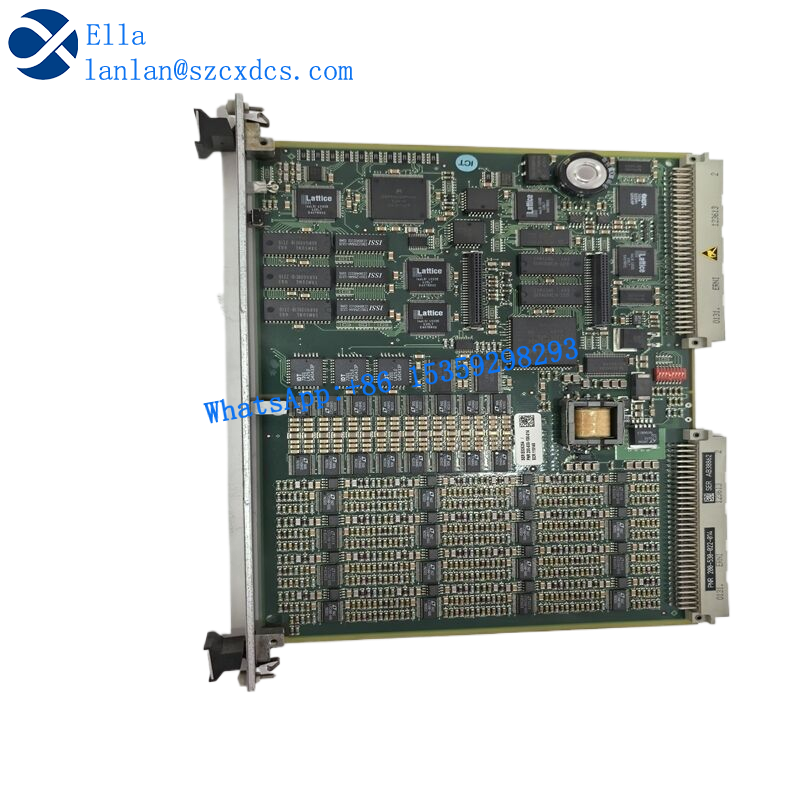

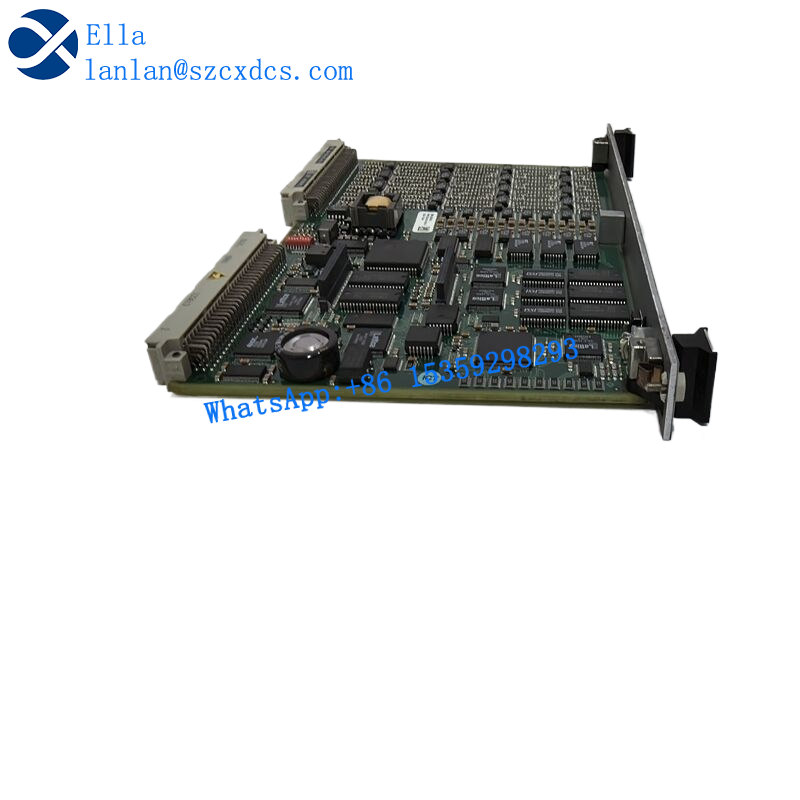

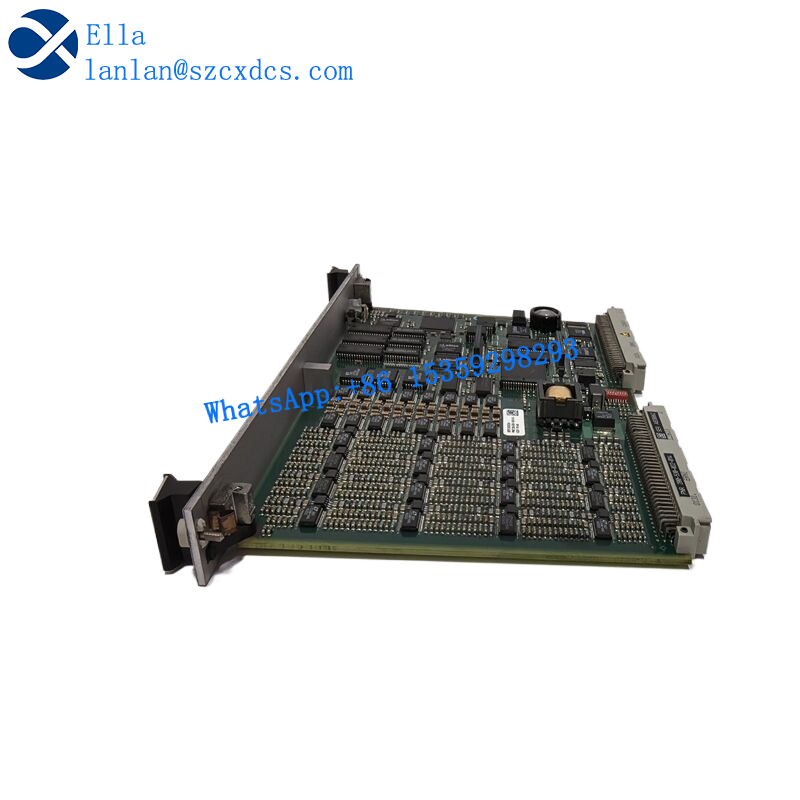

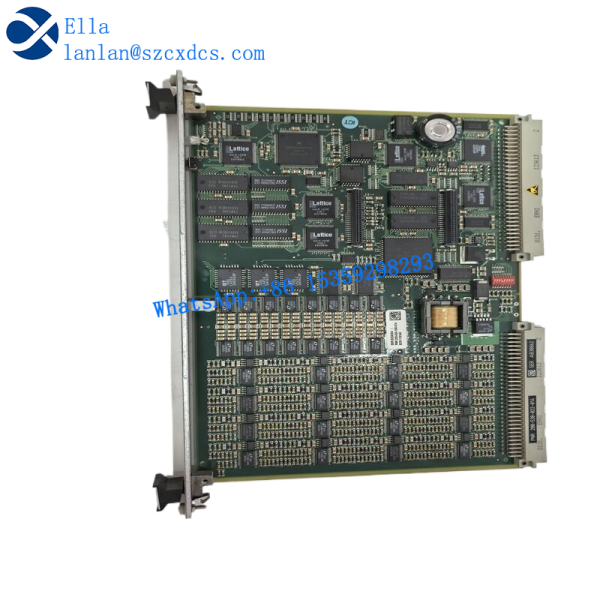

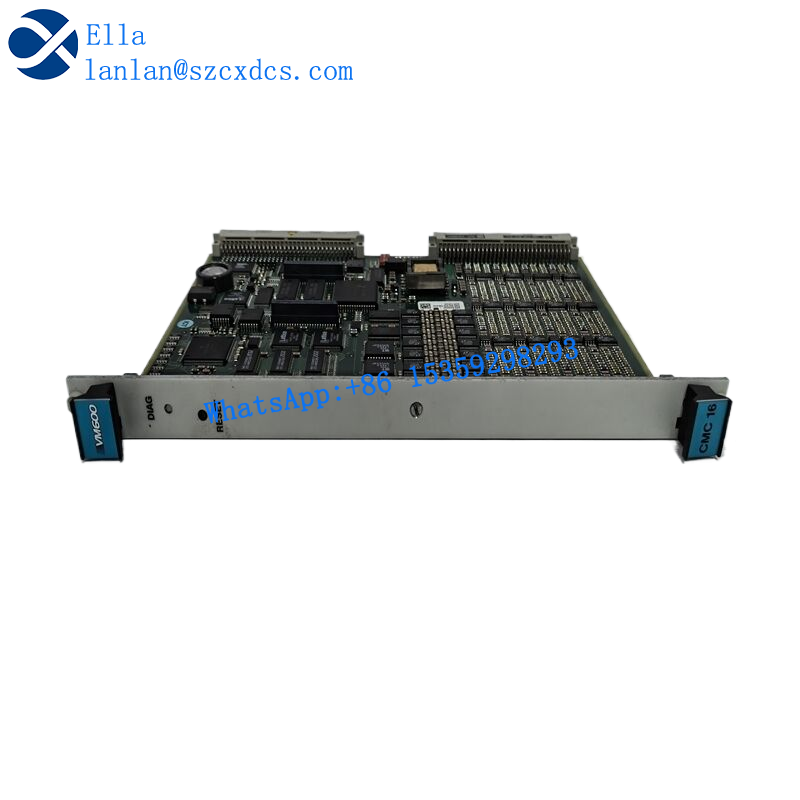

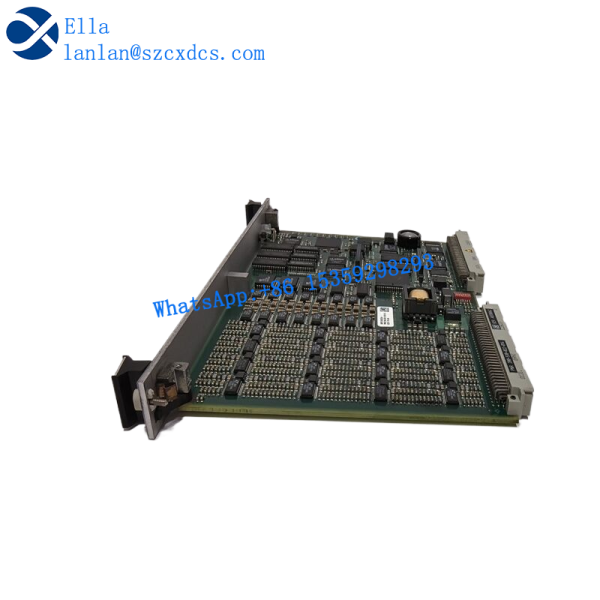

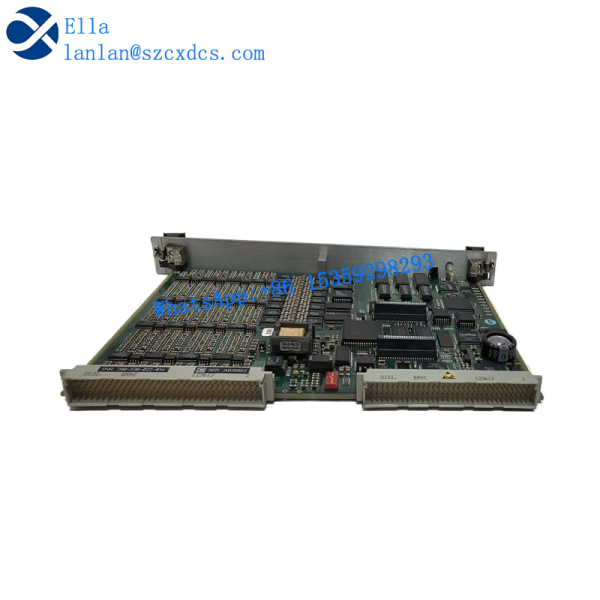

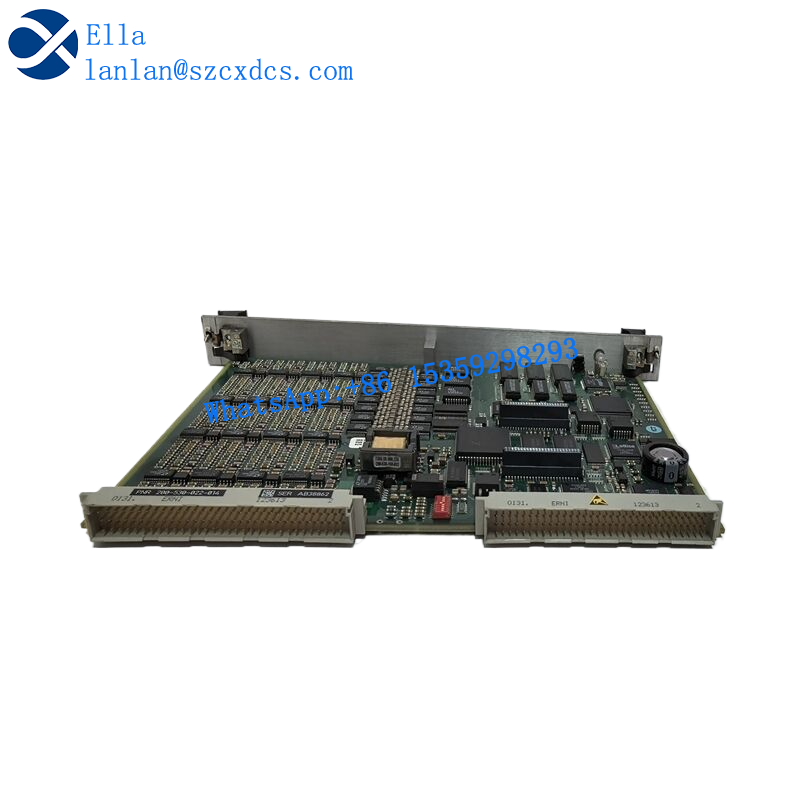

200-530-111-013 is a condition monitoring card in the Vibro Meter VM600 series, designed specifically for vibration and speed monitoring of industrial machinery. It can serve as the core acquisition unit of the VM600 system, providing high-precision, wideband vibration data, supporting multiple industrial communication protocols, and suitable for predictive maintenance and equipment protection in industries such as power generation, petrochemicals, pharmaceuticals, and logistics.
Model:  CMC16
Measurement frequency range: 200Hz~530Hz
Resolution: 0.025 mm/s
Channel configuration: 16 dynamic channels+4 RPM channels, all of which can be independently configured
Sampling/ADC: 24 bit data acquisition, supporting high-resolution FFT (up to 6400 rows/500 ms)
Communication methods: RS-485, Modbus (RTU/TCP), also supports Ethernet/PROFINET, etc
Operating temperature: Operating temperature from -25 ° C to+65 ° C, storage temperature from -40 ° C to+85 ° C
Humidity: Maximum 95% (non condensing)
Size: 163   mm  × 38   mm  × 58   mm (some models are 100   mm  × 80   mm  × 40   mm)
Weight: Approximately 0.35 kg (or 0.5 kg)
Accuracy: Reading error of approximately ± 1%
Output: Configurable relay/digital output, supporting 10 programmable processing outputs/channels
Software compatibility: CMC16 200-530-111-013 is used in conjunction with VibroSight/VM8 MPSx software to provide real-time trends, alarms, logs, and other functions.

Product features:
High precision acquisition: With a resolution of 0.025 mm/s and a 24 bit ADC, it can capture subtle vibration signals.
Multi channel flexible configuration: 16 dynamic channels and 4 speed channels can be freely combined according to on-site needs.
Powerful data processing: The CMC16 has built-in high-resolution FFT and up to 10 programmable outputs, supporting multiple analyses in both frequency and time domains.
Industrial grade reliability: wide temperature operating range, IP30 protection, modular hot swappable design, suitable for harsh on-site environments.
Open communication: 200-530-111-013 supports mainstream industrial protocols such as Modbus, Ethernet, PROFINET, etc., making it easy to integrate with PLC and SCADA systems.
Software Ecology: CMC16 200-530-111-013 is equipped with VibroSight/VM8 MPSx software, which provides graphical configuration, trend analysis, alarm management, and reduces debugging and maintenance costs.

Category: Industrial Control Module
Sold to: Global
Scope of application: Steel plants/thermal power plants/tire plants/water plants, etc
Service advantages: foreign imports, stock supply, competitive prices, and quality assurance
