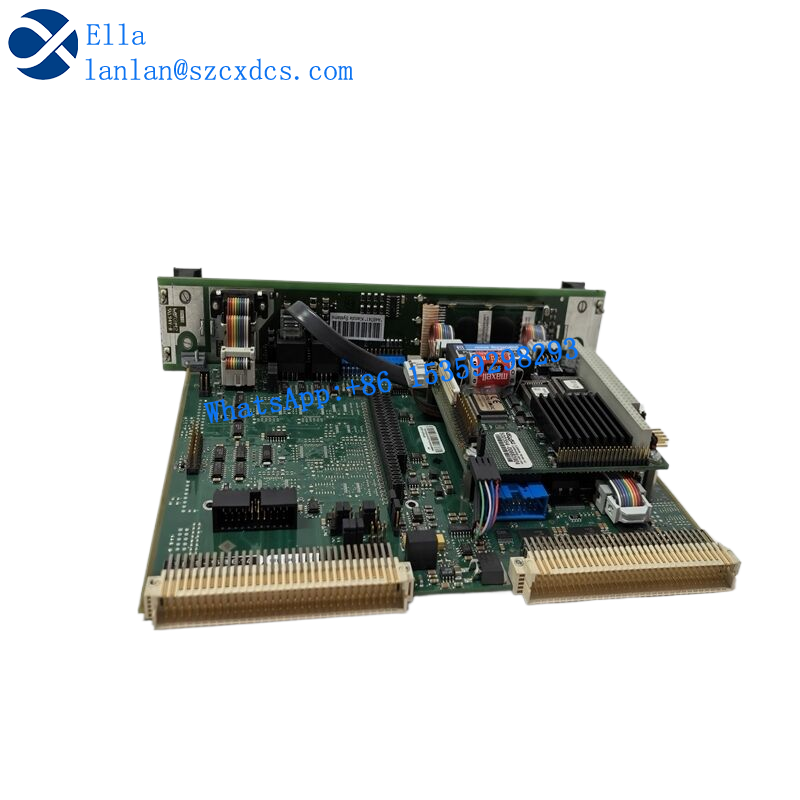

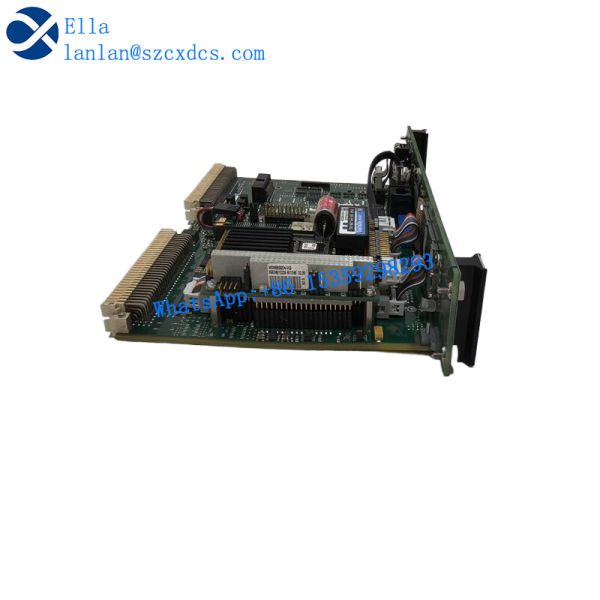

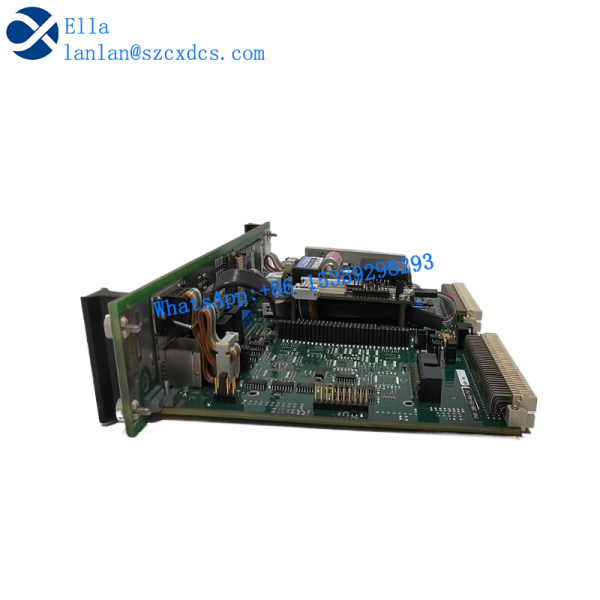

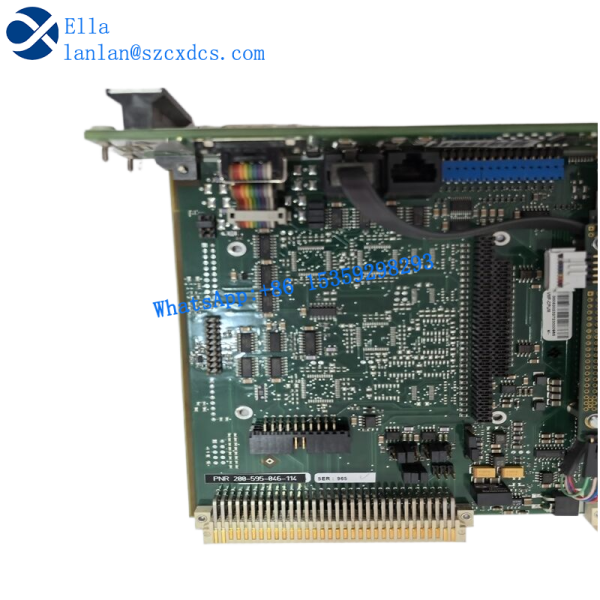

200-595-046-114 IOC4T is an input/output (I/O) card of the Meggitt Vibro Meter VM600 series, designed specifically for mechanical protection and condition monitoring systems. The card is installed at the rear of the VM600 rack and works in conjunction with the MPC4 protection card through the backplane. It is responsible for converting raw signals such as vibration and speed into standard analog or digital outputs, and providing local relays and digital alarm channels to meet the various sensor access and control needs of industrial sites.
Model: 200-595-046-114
Interface/Bus: Industry Pack (IP) interface, also available via PCI Express x4 (200 Mb/s)
Power supply:+5V DC power supply 1.5 W; ± 12VDC power supply 0.7 W+0.25 W/output per channel
Power consumption: approximately 11 watts (PCIe version)
Analog output: 4 channels, 0~10 V or 4~20 mA (can be selected through jumper)
Accuracy: ≤ ± 0.5%, linear error ≤ ± 0.5%
Analog output load: voltage output>100 k Ω, current output<325 Ω
Local relay: 4 channels
Action/release/bounce time is approximately 8 ms/8 ms/6 ms
Dielectric strength: Open circuit contact 1000 VAC, coil to ground 4000 VAC
Mechanical lifespan: 1.5 × 10 cycles, electrical lifespan>10 cycles
Digital I/O: 16 digital inputs, 8 digital outputs (some materials list 32 alarm signals that can be forwarded through the backplane)
Communication protocol: Supports Modbus, IP bus, compatible with VM600 system upper computer/SCADA
Environment: Operating temperature -25 ° C~+65 ° C, storage temperature -40 ° C~+85 ° C
Relative humidity 0%~90% (non condensing)
Size/Weight 6U high (262   mm), width 20   mm, depth 125   mm, weight approximately 0.25   kg (IP version)
There are also models with specifications of 170 × 100 × 40 mm and 0.5 kg
Sampling rate/resolution 1   kHz~256   kHz, 16   bit resolution.

Function acceptance:
Multiple signal compatibility: IOC4T 200-595-046-114 can directly receive dynamic (vibration) signals, speed pulses, analog voltage/current, and discrete switch quantities.
Local signal processing: IOC4T has built-in DAC and current converter to achieve standard outputs of 0-10 V and 4-20 mA, which is convenient for use in the subsequent control system.
Reliable protection and alarm: 4 local relays and 32 digital alarm signals meet the requirements of machine protection and fault indication.
High anti-interference design: compliant with EN 50081-2 and EN 50082-2 EMC standards, with EMI filtering and surge protection.
Modular installation: The card is directly inserted into the VM600 rack backplane and combined with the MPC4 card to form a complete mechanical protection system, making it easy to maintain and expand on site.
