ABB SM500F Field Installed Paperless Recorder
| Brand: ABB |
| Item NO: SM500F |
| Effect: Collect on-site process signals such as thermocouples, thermistors, voltage, current, digital switch values, etc; |
| Condition: In stock, brand new/Used |
| Warranty: 365 days |
| Payment:T/T 50% deposit, 50% balance |
| www.szcxdcs.com |
+86 15359298293
ABB SM500F Field Installed Paperless Recorder

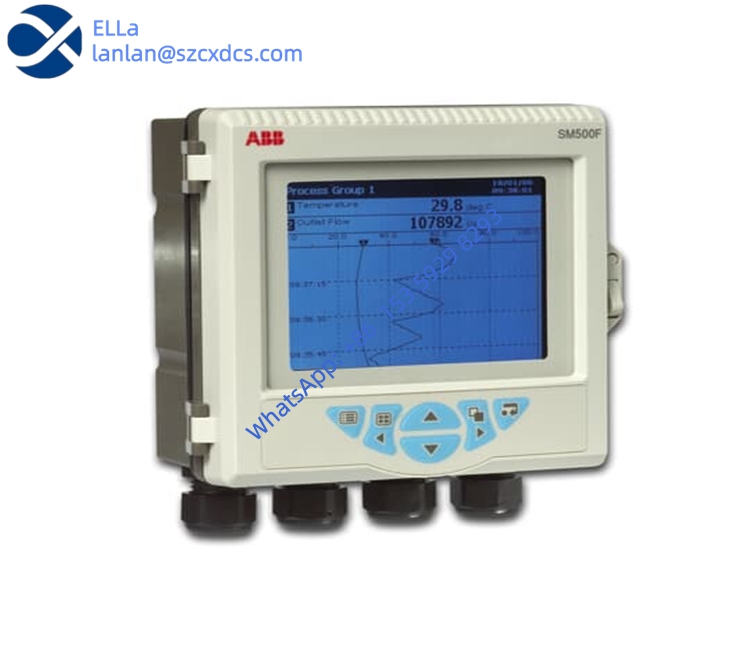

SM500F is a field installed paperless recorder produced by ABB. It has a fully sealed outdoor casing and supports multiple installation methods such as wall, pipeline, and panel. It does not need to be placed inside the control cabinet, SM500F can be directly installed near industrial measuring points; Modular I/O design, supporting optional Ethernet and relay outputs, meeting FDA 21 CFR Part 11 electronic record compliance requirements
Function: Collect on-site process signals such as thermocouples, thermistors, voltage, current, digital switch values, etc; Local display of real-time values, trend curves, and bar charts; Continuously record process history data at high speed and store it in the local flash memory and SD memory card; Support alarm relay output; Upload data to DCS and upper system via Modbus TCP/RTU; Support remote access to web pages to view records, achieve process data collection, storage, alarm, and traceability, and meet ABB’s production process audit tracking requirements
ABB SM500F Field Installed Paperless Recorder
Parameter Specifications
| Parameter | Value |
|---|---|
| Model | SM500F |
| Product family | Field‑mount paperless recorder |
| Display | Color TFT graphic display |
| Input channel | Max 4 universal inputs or 1 universal +6 process inputs |
| Signal type | TC,RTD,mV,mA,V,Resistance,digital input |
| Isolation | 500 V channel‑to‑channel galvanic isolation |
| Logging speed | Minimum 100 ms |
| Internal memory | 64 MB Flash memory |
| External storage | SD card slot |
| Relay output | Standard 1 relay,expandable to 3 relays |
| Relay rating | 250 VAC /30 VDC,5 A non‑inductive load |
| Communication | Modbus RTU(RS485),optional Modbus TCP Ethernet |
| Web server | Built‑in HTTP web server |
| Power supply | 100‑240 VAC or 10‑36 VDC |
| Power consumption | Max 10 W |
| Protection class | IP66 / NEMA 4X |
| Mounting type | Wall / Pipe / Panel mounting |
| Dimension(W×H×D) | 216 ×195 ×90 mm |
| Weight | 2.10 kg |
| Transport gross weight | 2.75 kg |
| Operating temperature range | -20 ~ +60 ℃ |
| Storage temperature range | -25 ~ +70 ℃ |
| Relative humidity | 5‑95% non‑condensing |
| Compliance | 21 CFR Part11,CE,UL,RoHS |
| Origin | United Kingdom |
Product Features
- Fully sealed IP66/NEMA4X protective shell, can be directly installed on site, resistant to dust and flushing spray, does not need to be installed in a closed control cabinet, supports wall mounting, pipe clamp installation, and panel opening installation.
- Modular I/O, universal input channel, can switch thermocouple, thermistor, 4-20mA, voltage and other signals without hardware or software modification; 500V electrical isolation between channels, with strong resistance to on-site interference.
- Color graphic display screen, supporting multiple display modes such as trend curves, bar charts, and numbers; Panel button operation, built-in help menu, convenient configuration and debugging.
- 64MB local flash memory+SD card external storage, data secure archiving; Complete audit trail, meeting the electronic record compliance requirements of 21 CFR Part 11 in the pharmaceutical industry, ensuring data cannot be tampered with.
- Standard configuration includes one alarm relay, which can be extended to three relays to achieve process alarm outputs such as over temperature and over pressure.
- Supports RS485 Modbus RTU, optional Ethernet module, built-in web server, browser for remote viewing and reading of recorded data, supports FTP file export.
- Support batch recording function, suitable for data traceability in batch process production.
- DataManager Pro software is used for historical data analysis and report export analysis on the computer side.
