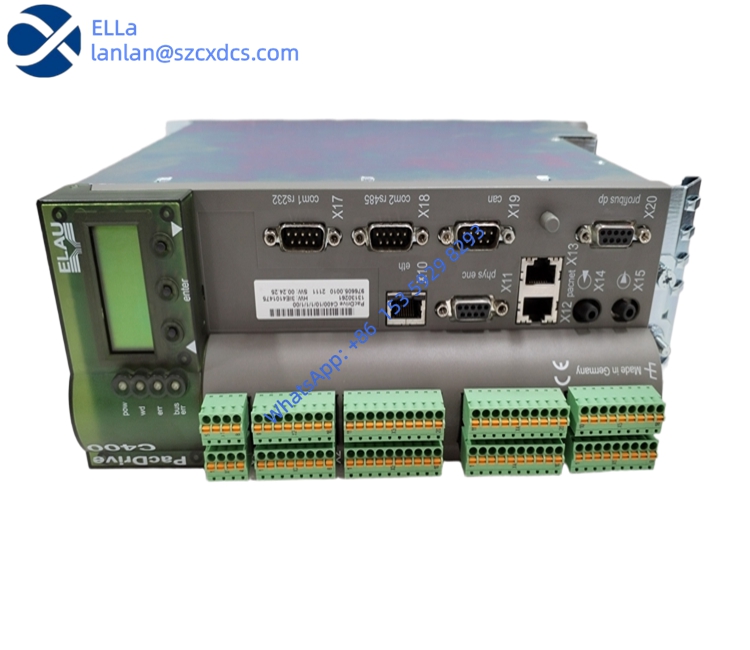

ELAU C400/A8/1/1/1/00 high-performance motion controller
| Brand: Schneider ELAU PacDrive C400-A8 |
| Item NO: C400/A8/1/1/1/00 |
| Effect: Execute PLC logic and complex motion algorithms |
| Condition: In stock, brand new/Used |
| Warranty: 365 days |
| Payment:T/T 50% deposit, 50% balance |
| www.szcxdcs.com |
+86 15359298293
ELAU C400/A8/1/1/1/00 high-performance motion controller
C400/A8/1/1/1/00 Material number VCA08AAAA0AA00 belongs to Schneider ELAU PacDrive C400-A8 high-performance motion controller. The main body has no servo power output and relies on optical fiber SERCOS-II bus to connect MC-4 series servo drives. It can control up to 8 axes of servo and is the core of motion and logic control for medium and large light industry equipment.
main function
- Execute PLC logic and complex motion algorithms to complete electronic cam, flying shear, color code tracking, electronic gear, tension control, and multi axis synchronous interpolation process calculations.
- Send real-time motion commands to the servo slave station through the fiber optic SERCOS bus, coordinating high-precision synchronous operation of up to 8 servo axes.
- Integrate local digital/analog IO, collect on-site switch and sensor signals, output execution signals, and complete the whole machine interlocking logic.
- Supports Profibus DP, CANopen, Ethernet, and interfaces with HMI, upper PLC, and remote IO to achieve data exchange of the entire machine.
- CF card stores programs and process parameters, supports program backup and firmware upgrade; Equipped with complete fault diagnosis, collecting bus, driver, IO faults and outputting alarms for easy on-site maintenance.
ELAU C400/A8/1/1/1/00 high-performance motion controller
Parameter Specifications
| Specification | Details |
|---|---|
| Model | C400/A8/1/1/1/00 |
| Alternative Order Code | VCA08AAAA0AA00 / 17130202‑001 |
| Manufacturer | Schneider Electric (ELAU) |
| Product Type | Multi‑axis Motion Controller |
| CPU | Intel Celeron‑M 600 MHz |
| Memory | 256 MB RAM, 128 kB NVRAM |
| External Storage | CompactFlash Card ≥128 MB |
| Real‑time OS | VxWorks |
| Max Sercos Axis | 8 axes |
| Motion Bus | SERCOS II Fiber‑optic |
| Field Bus | Profibus‑DP, CANopen, Ethernet TCP/IP |
| Serial Interface | RS232, RS485 |
| Local I/O | 20DI,16DO,2AI,2AO,4 Interrupt,16 Touchprobe |
| Programming Standard | IEC 61131‑3 |
| Power Supply | 24 VDC, 1.4 A |
| Mounting | DIN‑rail cabinet mounting |
| Protection Class | IP20 |
| Operating Temperature | 0 ℃ ~ +55 ℃ |
| Diagnostics | Status LCD, LED indicators, watchdog, self‑diagnosis |
| Weight | 2.1 kg |
| Origin | Germany |
Product features
- 8-axis medium-sized multi axis controller, suitable for medium to large automation equipment, balancing performance and cost, suitable for complex synchronous process equipment within 8 axes.
- VxWorks hard real-time operating system, with short motion control cycle and small synchronization jitter, ensures the precision of processes such as flying shear, color code tracking, and high-speed winding.
- The fiber optic SERCOS-II motion bus has strong electromagnetic interference resistance and is suitable for strong electrical interference conditions in workshops. The servo drive can be distributed.
- The board is rich in local IO, with built-in digital, analog, and high-speed capture of Touchprobe inputs, which can be directly connected to color sensors and proximity switches, reducing the need for external IO module procurement.
- Multi protocol communication interface, Ethernet Profibus‑DP、CANopen， Flexible integration with third-party human-machine interfaces and PLC systems.
- Following the IEC61131-3 standard, EPAS-4 software programming and debugging are supported, including cam gauges and motion function blocks, and the program is portable.
- CF card media, convenient for on-site program backup, recovery, firmware upgrade, and supports remote maintenance of web services.
- LCD panel+LED status indicator light, allowing for local viewing of running, bus, and fault codes, enabling quick troubleshooting without the need for a computer; The original factory has ceased production and is mainly used as replacement parts for old equipment maintenance, perfectly matching the ELAU MC-4 servo drive series.
