Emerson A6500-UM Universal Measurement and Monitoring Card
| Brand: Emerson AMS 6500 ATG system |
| Item NO: A6500-UM |
| Effect: Sensor signal acquisition and processing |
| Condition: In stock, brand new/Used |
| Warranty: 365 days |
| Payment:T/T 50% deposit, 50% balance |
| www.szcxdcs.com |
+86 15359298293

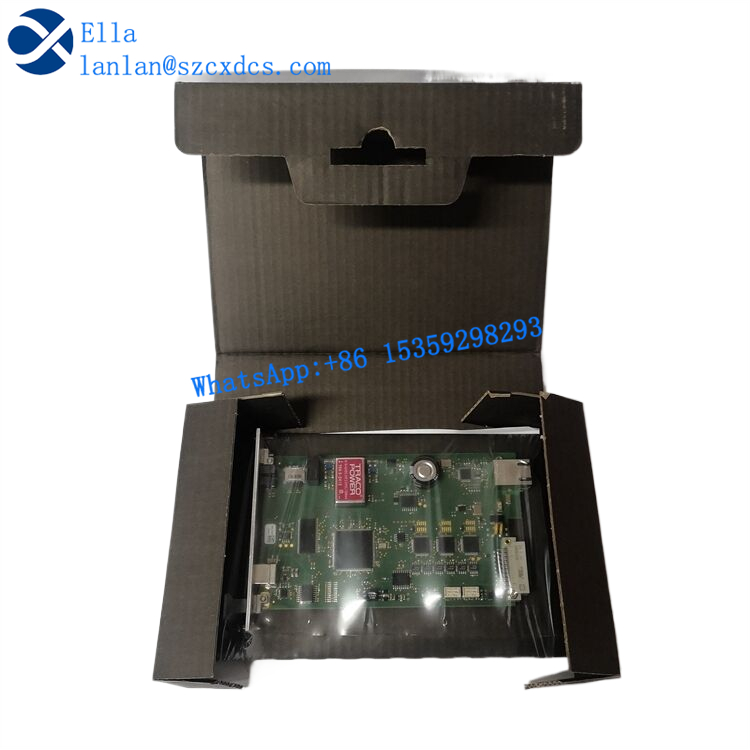

Emerson A6500-UM Universal Measurement and Monitoring Card
A6500-UM is a universal measurement and monitoring card for Emerson AMS 6500 ATG system, belonging to TSI rotating machinery protection module of API 670 standard. A6500-UM supports signal acquisition and processing from multiple types of sensors, and can measure key mechanical parameters such as relative shaft vibration, absolute shaft vibration, eccentricity, axial displacement, differential expansion, rotational speed, key phase, and casing vibration; A6500-UM will compare the collected signals with the alarm threshold, output alarm and trip relay signals, achieve status monitoring and safety protection of rotating equipment, prevent major mechanical damage to the equipment, and output analog signals for predictive maintenance analysis of the equipment.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Module Type | Universal Measurement Card |
| Sensor Input Channels | 2 channels (independent or combined mode) |
| Supported Sensor Types | Eddy‑current, Piezoelectric(accelerometer/velometer), Seismic, LF bearing vibration, Hall‑effect, LVDT (with A6500‑LC) |
| Eddy‑current Input Voltage Range | -1V ~ -22V DC |
| Piezoelectric Input Voltage Range | +1V ~ +23V DC |
| Frequency Response | 0Hz ~ 18750Hz (configurable) |
| Measurement Range | 0‑400mV ~ 0‑8000mV (software configurable) |
| Output | Buffered signal output, 0/4‑20mA analog output |
| Measurement Accuracy | ±1% of full‑scale range |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Relative Humidity | 5%‑95% non‑condensing |
| Physical Format | 3U Eurocard, single slot |
| Dimensions | 128.4 × 30.0 × 160.0 mm |
| Net Weight | Approx. 200g |
| EMC Compliance | IEC 61326‑1 |
| Compliance Standard | API‑670 |
Emerson A6500-UM Universal Measurement and Monitoring Card
Product features
- Multi sensor compatibility: It can adapt to various on-site sensors such as eddy current, piezoelectric acceleration/velocity, seismic, low-frequency bearing vibration, Hall, LVDT, etc., and achieve multi type mechanical parameter measurement with a single module.
- Dual channel flexible configuration: Two input channels can work independently or in combination, supporting multiple measurement modes such as vibration, displacement, speed, and key switching.
- Hardware level protection logic: Built in alarm and dangerous trip relay output, fast hardware response, meeting API-670 mechanical protection specifications, ensuring safe shutdown of rotating equipment.
- Rich signal output: Provides buffered raw signal output and 4-20mA analog output, which can be used for system protection and predictive maintenance of analysis systems.
- Standard rack mounted design: 3U Eurocard card structure, compatible with 19 inch standard cabinets, single slot installation, easy cabinet layout, maintenance and replacement.
- Wide temperature industrial environment adaptability: working temperature -20 ℃~70 ℃, anti electromagnetic interference, suitable for harsh industrial sites such as power plants and petrochemicals.
- Supporting system integration: Connect to AMS 6500 ATG rack, cooperate with communication card A6500-CC to achieve Modbus and OPC UA data upload, and can interface with AMS mechanical management software to complete waveform and spectrum analysis and equipment health management
