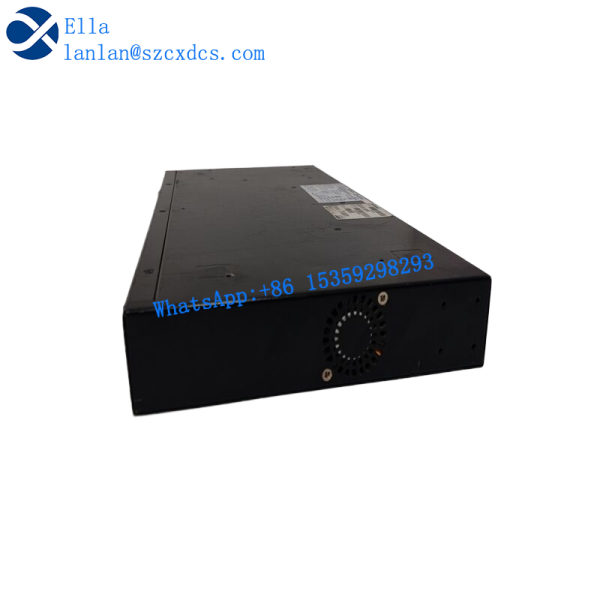

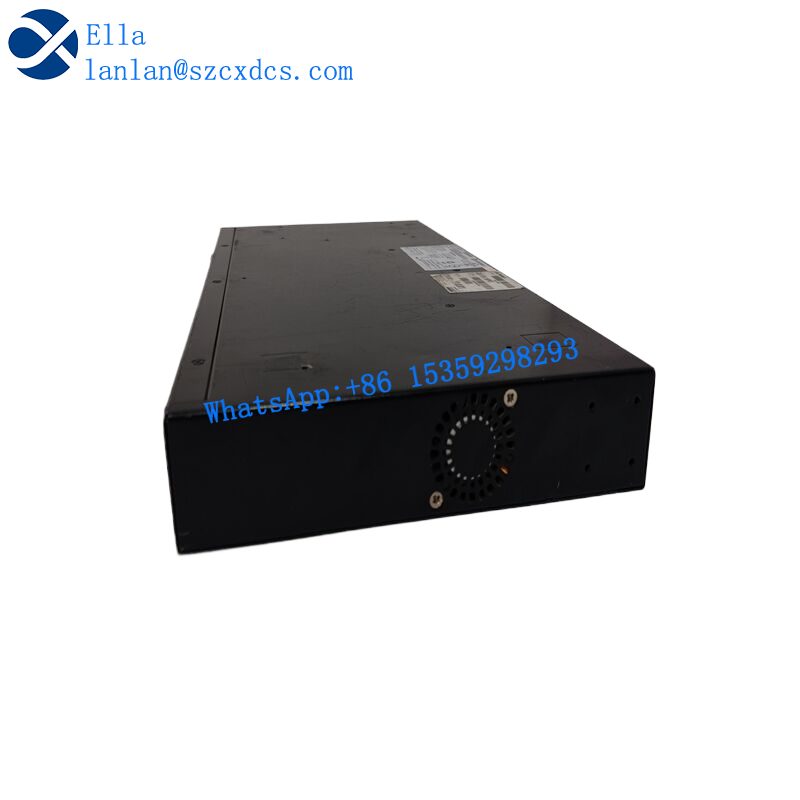

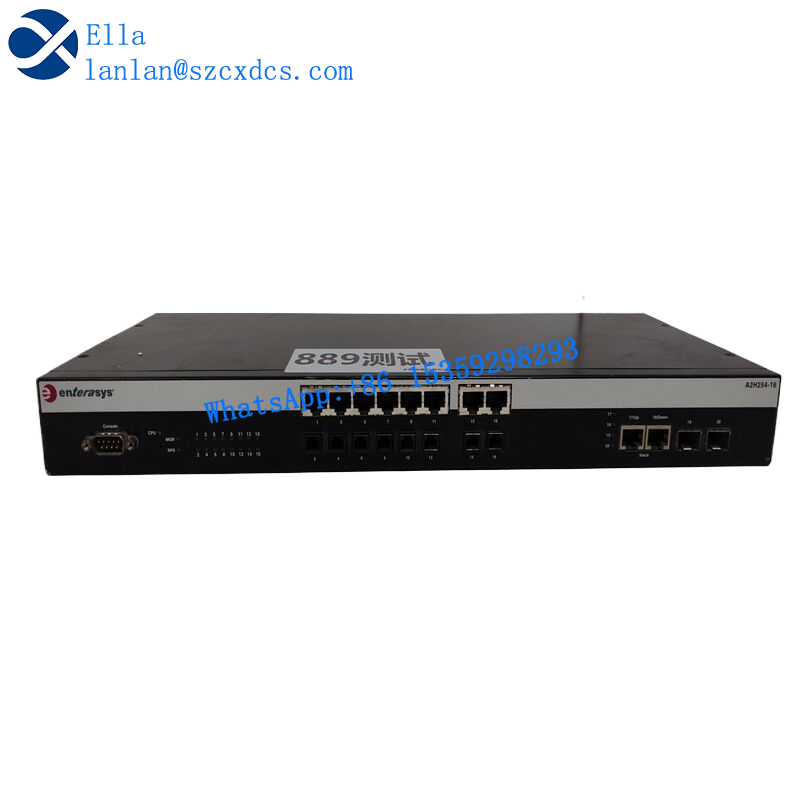

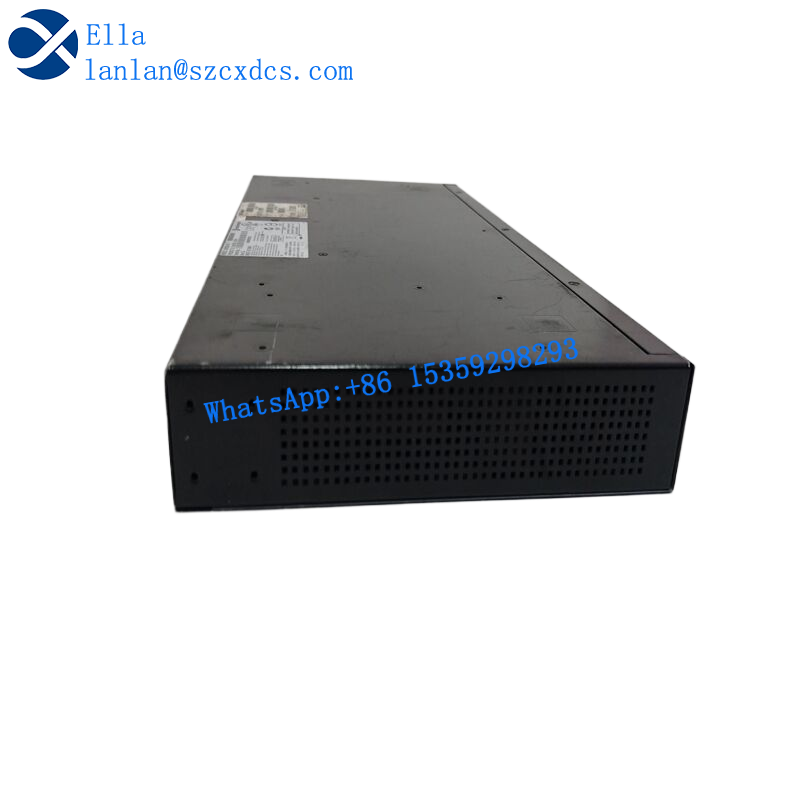

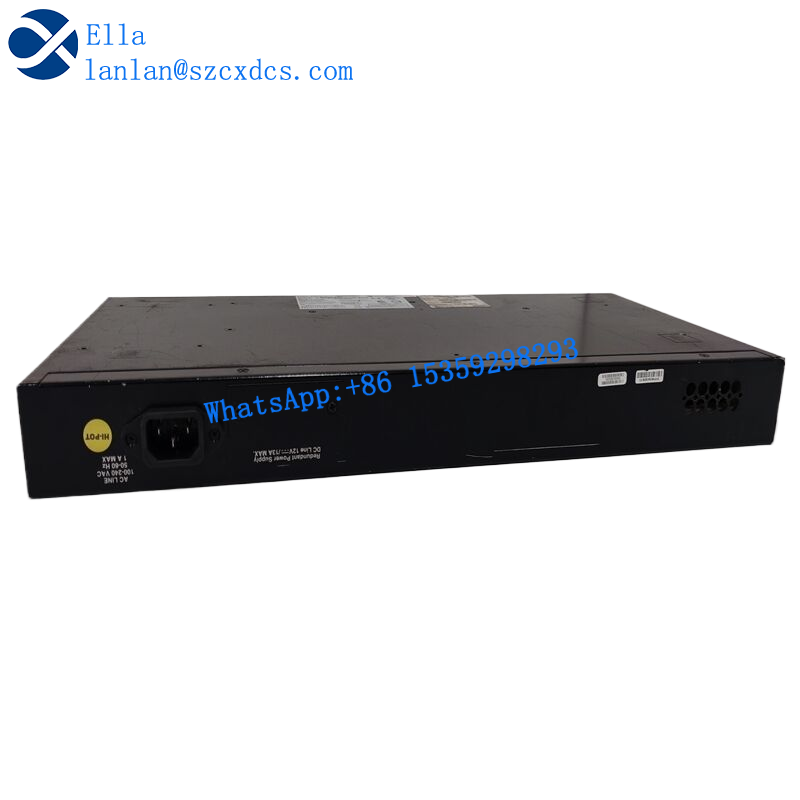

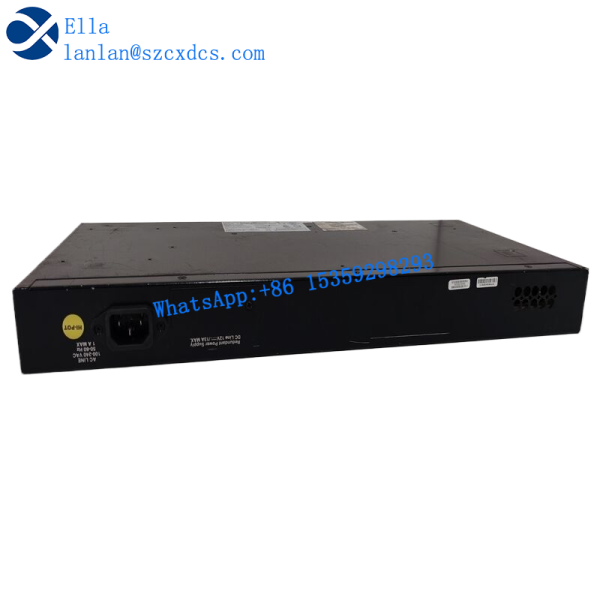

ENTERASYS A2H254-16-RH is a high-performance, industrial grade managed Ethernet switch widely used in enterprise network access layers, industrial automation systems, building cabling, and intelligent transportation communication scenarios.
Main technical parameters:
Interface type: 16 10/100/1000 Mbps RJ45 ports, 2 shared fiber gigabit SFP upstream ports.
Switching capacity: 32 Gbps.
Packet forwarding rate: 23.8 Mpps.
MAC address capacity: 8000 entries.
VLAN support: 802.1Q, supports 255 VLANs.
Management function: Supports CLI, Telnet, SNMP, HTTP/HTTPS, SSH.
QoS support: IEEE 802.1p, 4-queue priority scheduling.
Security features: 802.1X, Radius, ACL, Port Security.
Redundancy feature: Supports RSTP, LACP, ring network redundancy, etc.
Cooling method: fanless design (passive cooling).
Power input: AC 100-240V, 50/60Hz.
Size: Standard 1U, approximately 44 × 21 × 4.4 cm.
Working temperature range: 0 ° C to+50 ° C.
Installation method: 19 inch rack mounted or wall mounted (optional).

Product Features:
High performance design: Gigabit RJ45 access, SFP optical port uplink, meeting high bandwidth requirements.
Full management function: A2H254-16-RH supports policy based VLAN, port aggregation, and bandwidth control.
Industrial grade applicability: fanless, low-power, suitable for industrial control rooms and noise sensitive environments.
Flexible access method: a hybrid design of electrical and optical ports, suitable for multiple network topologies.
Enterprise level security controls include 802.1X, ACL, port isolation, and Radius authentication to ensure network boundary security.
