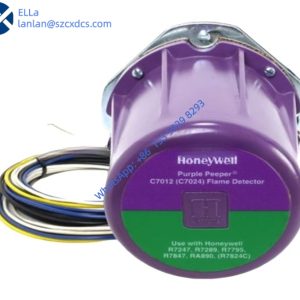

HONEYWELL C7012E1112/U Self Testing UV Flame Detector
| Brand: Honeywell |
| Item NO: C7012E1112/U |
| Effect: Real time monitoring of flames from gas, fuel, and coal powder burners |
| Condition: In stock, brand new/Used |
| Warranty: 365 days |
| Payment:T/T 50% deposit, 50% balance |
| www.szcxdcs.com |
+86 15359298293
HONEYWELL C7012E1112/U Self Testing UV Flame Detector
C7012E1112/U is a ultraviolet (UV) flame probe produced by Honeywell. It detects the UV radiation generated by fuel combustion to determine the true state of flames in the furnace, and is a core component of combustion safety protection. C7012E1112/U must be used in conjunction with R7247C/R7847C flame amplifiers for industrial burner flame monitoring.
main function:
- Real time monitoring of flames from gas, fuel, and coal powder burners; If there is a valid flame signal output from the fire, a shutdown signal will be sent to the combustion safety controller to trigger the safety interlock to cut off the fuel and prevent furnace explosion accidents.
- Built in dynamic self checking shutter mechanism continuously verifies whether the probe sensor is normal, avoiding the dangerous failure mode of “no fire false alarm with fire” caused by probe damage, and meeting the safety regulations for continuous operation of combustion equipment.
- Convert the flame ultraviolet signal into an electrical signal and transmit it to the supporting flame amplifier and combustion management system to participate in ignition and extinguishing protection logic.
- Support parallel connection of two probes to improve the reliability of low load flame detection and reduce false shutdown situations
Parameter Specifications
| Item | Specification |
|---|---|
| Model | C7012E1112/U |
| Product Type | Dynamic self‑checking UV flame detector |
| Supply Voltage | 120 V AC, 50/60 Hz |
| Power Consumption | 7 W |
| Mounting Thread | 1‑inch NPT |
| Housing Rating | NEMA 4 |
| View Window Pressure Rating | 20 psi |
| Lead Wire Length | 96 inch (2438 mm) |
| Operating Ambient Temperature | -29 ℃ ~ +79 ℃ |
| Compatible Amplifier | R7247C, R7847C |
| Detectable Fuel | Natural gas, LPG, fuel oil, pulverized coal |
| Certifications | UL, CSA, FM, CE(EN298 with matched system) |
| Dimension | 133 mm × 183 mm |
| Weight | Approx.1.9 kg |
| Country of Origin | USA |
HONEYWELL C7012E1112/U Self Testing UV Flame Detector
Product features
- Dynamic mechanical self check function: The internal shutter periodically blocks the ultraviolet sensor, automatically verifying the hardware integrity of the probe, eliminating safety hazards caused by probe failure, and suitable for long-term continuous operation of the burner.
- The principle of ultraviolet spectroscopy detection is not affected by visible light and infrared thermal radiation interference in the furnace, and it is stable for flame recognition of gas, fuel oil, and coal powder.
- NEMA4 shell protection, dust-proof and splash proof, suitable for indoor and outdoor furnace installation scenarios; The quartz observation window can withstand a forward pressure of 20psi in the furnace.
- Support parallel use of dual probes, aimed at burners with large flame fluctuations and adjustment ratios, to reduce the probability of false flameout protection tripping, and can rotate and maintain a single probe online.
- The quartz window and ultraviolet sensing tube can be replaced separately on site, without the need to replace the probe as a whole, reducing spare parts costs.
96 inch color coded pre installed cable for easy and convenient wiring; Flexible installation angle, can be installed horizontally, vertically, or diagonally. - It is fully compatible with Honeywell 7700, 7800 series combustion management systems and R7247C/R7847C flame amplifiers.
Usage Scenarios
- Thermal power plant boilers: gas/oil boilers, coal powder boilers, burner flame monitoring, furnace shutdown safety protection.
- Petrochemical refining heating furnace: cracking furnace, reforming furnace, process heating furnace main fire and pilot flame detection.
- Metallurgical industry: Combustion safety monitoring for hot blast furnaces, heat treatment furnaces, and heating furnaces.
- Glass and ceramic kilns: Flame monitoring of gas and fuel burners in industrial kilns.
- The factory has its own boiler room and heating station: industrial gas boilers and oil fired boilers for combustion safety protection.
- Heating equipment for oil and gas process units: non explosion proof area burners, torches, and incinerator flame detection.
