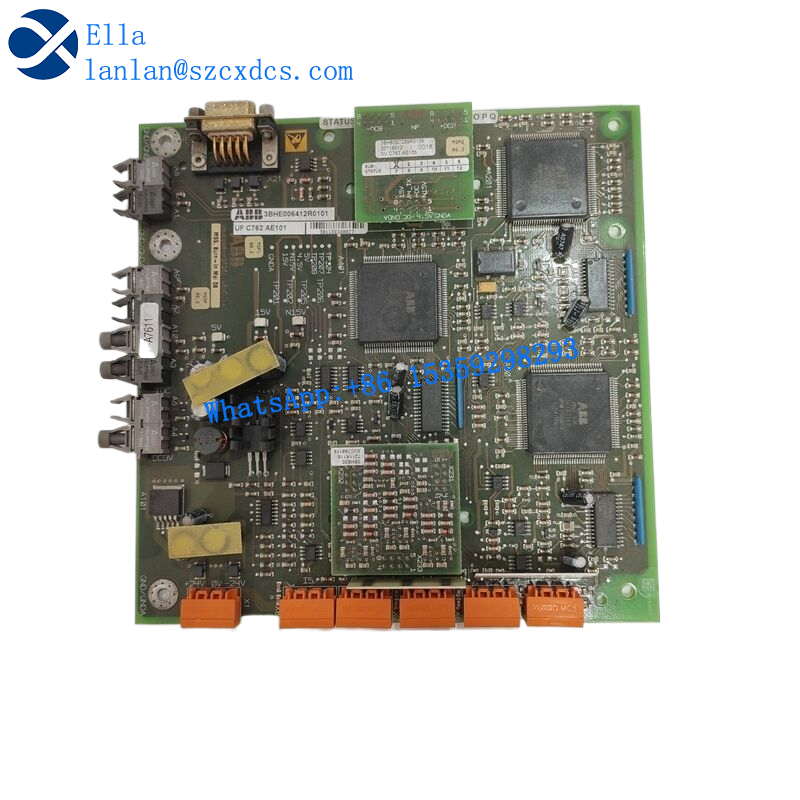

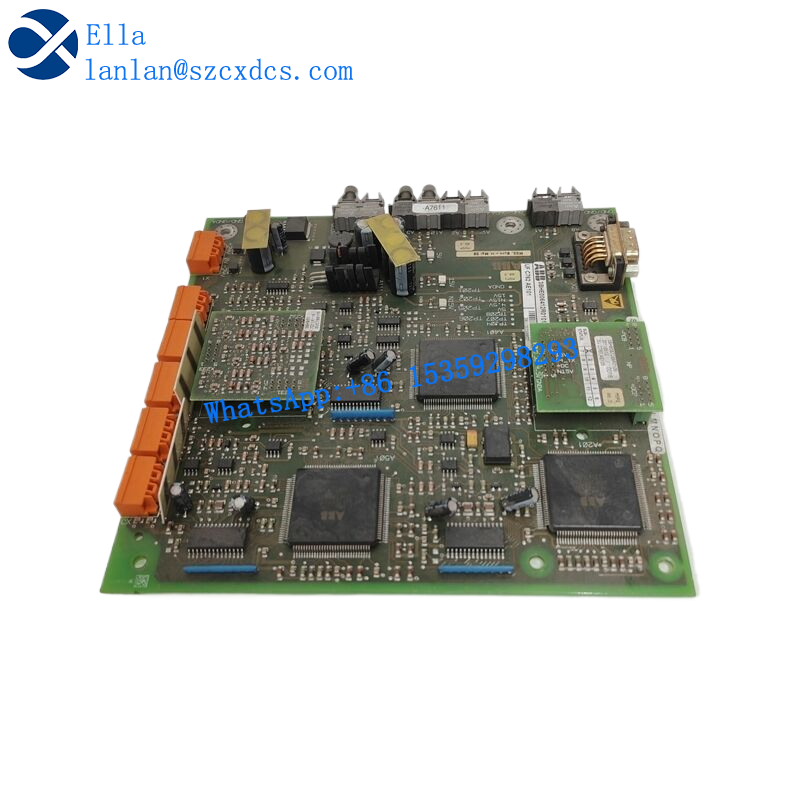

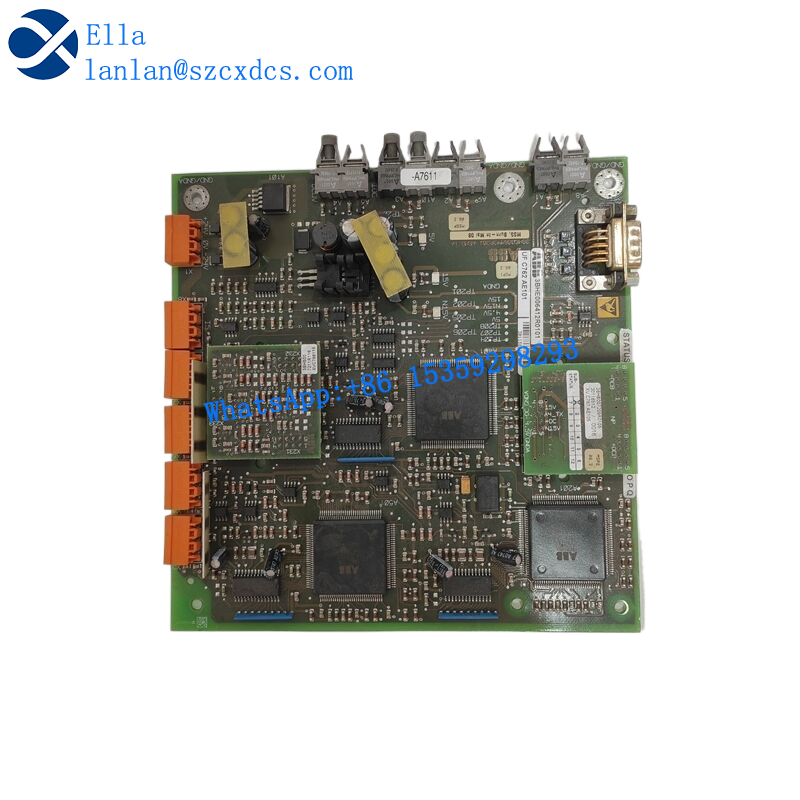

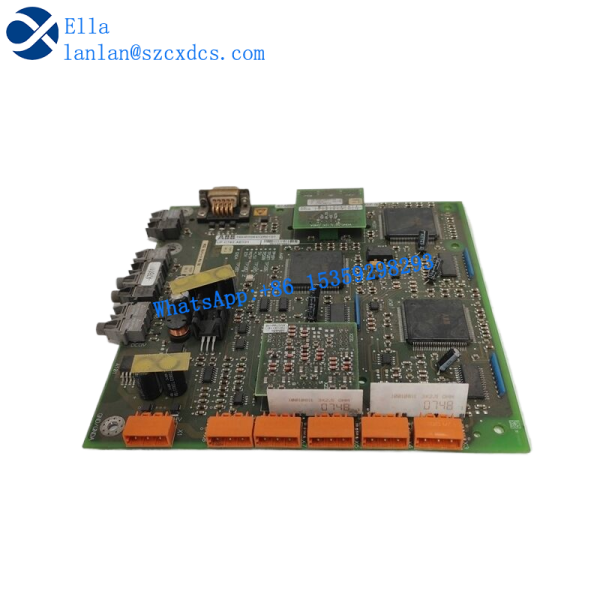

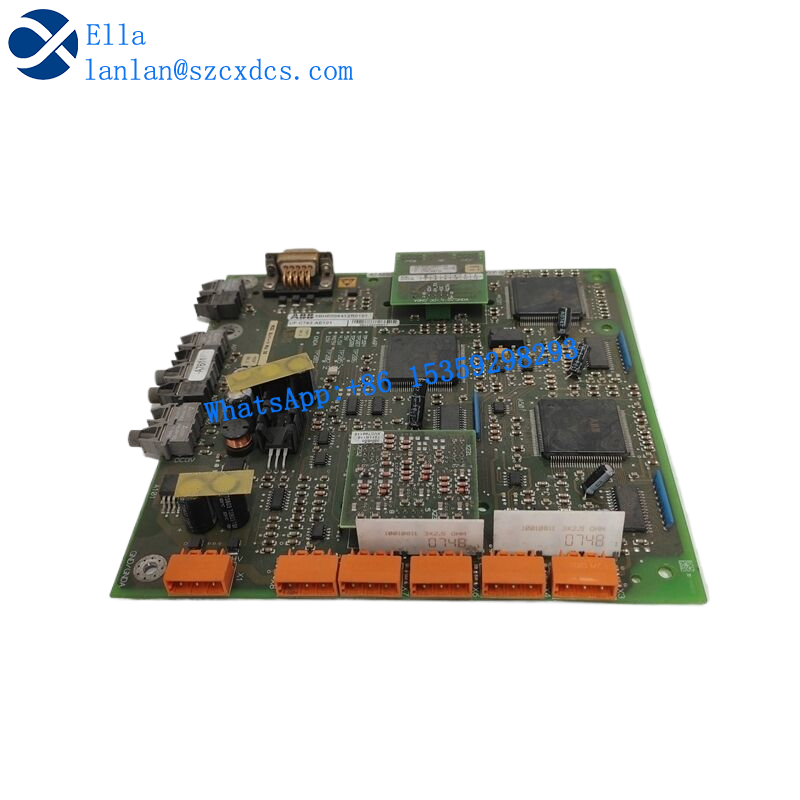

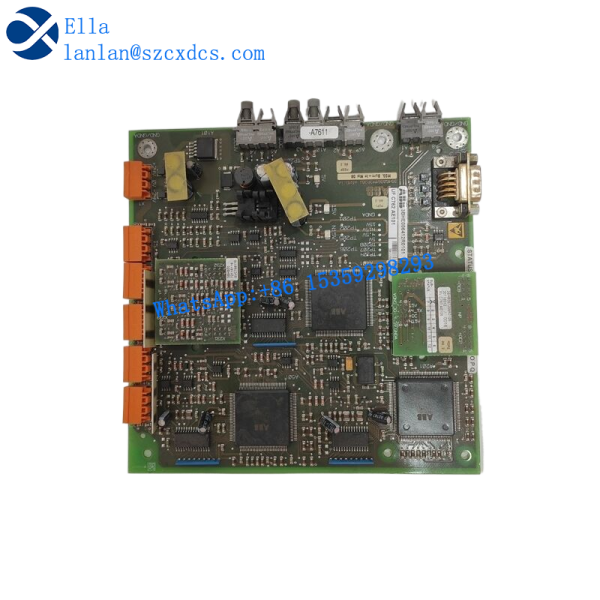

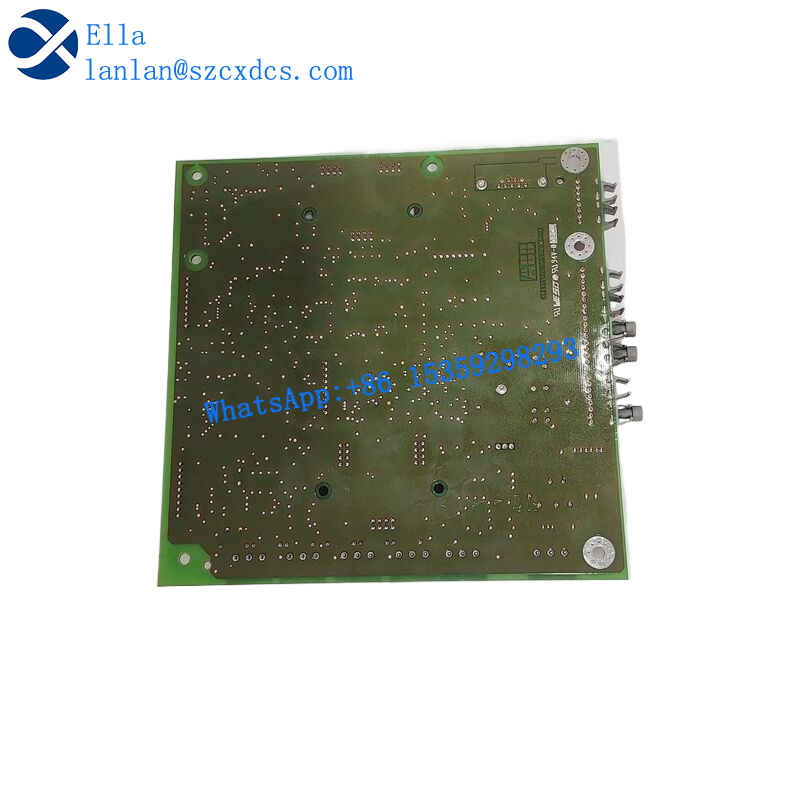

UFC762AE101 3BHE006412R0101 is a multifunctional control module designed specifically for industrial automation, capable of achieving precise position, speed, and torque control. It adopts advanced control technology and has the characteristics of high efficiency, reliability, and intelligence, suitable for driving and controlling servo motors. The UFC762AE101 module belongs to ABB’s AC500 series controller and is suitable for various industrial automation needs.
Technical Parameter
Power supply voltage: 24V DC
Power consumption: 5 W
Working temperature range: -20 ° C to+70 ° C
Storage temperature range: -40 ° C to+85 ° C
Humidity range: 5% to 95% non condensing
Protection level: IP20 or IP65
Input/output interface:
Input voltage: AC 100~240V or DC 24V
Output voltage: 0~10V DC or ± 1000VDC
Output current: maximum 10A
Communication interfaces: RS-232, RS-485, Ethernet
CPU: 32-bit RISC processor with a clock speed of 100 MHz
Memory: 256 KB
Program storage space: 2 MB
I/O points: 24

Characteristics and advantages：
Modular design: UFC762AE101 3BHE006412R0101 adopts modular design, which is easy to expand and integrate, and meets different application needs.
High reliability: The UFC762AE101 module is made of high-quality materials and has high reliability and stability, which can adapt to the requirements of industrial environments and ensure the stable operation of the system.
Multiple input/output configurations: Provides multiple input/output configurations, such as analog input (0-10V, 4-20mA) and digital input (ON/OFF), as well as corresponding analog and digital outputs.
Advanced fault diagnosis and protection functions: Equipped with fault diagnosis and protection functions, it can monitor the system status in real time and provide corresponding protection measures when faults occur, ensuring the safe operation of the system.
Multiple communication interfaces: UFC762AE101 is equipped with multiple communication interfaces, such as Ethernet, USB, RS232/RS485, etc., for easy data exchange and communication with other devices and systems.

************************************************************************************
