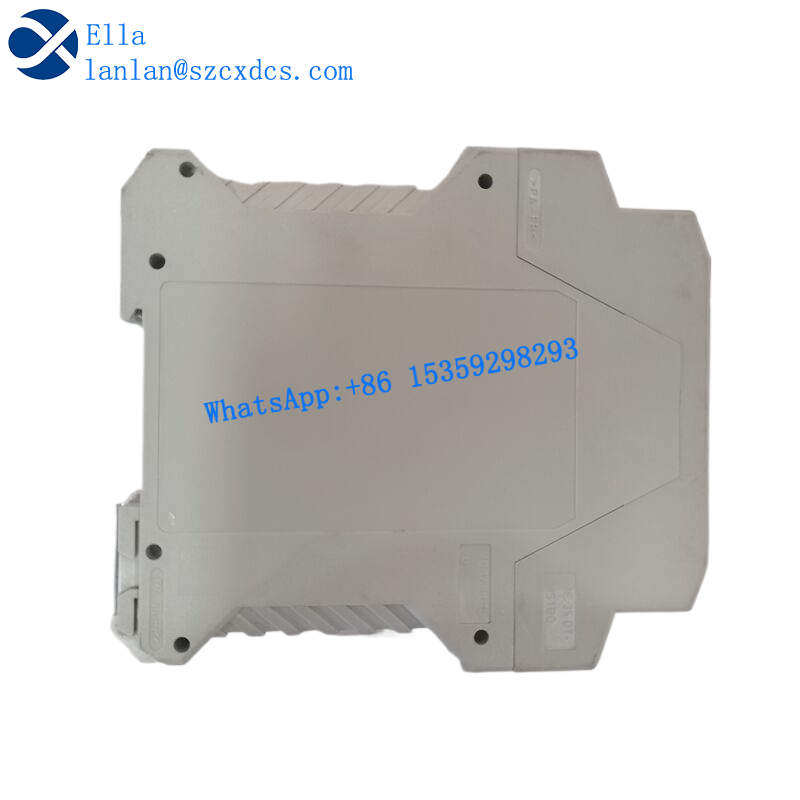

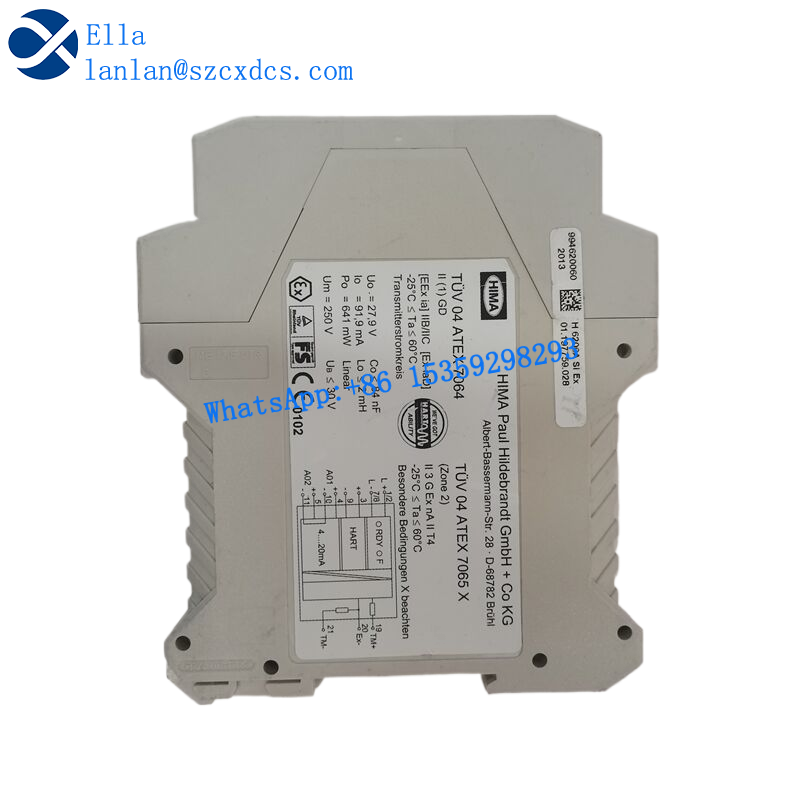

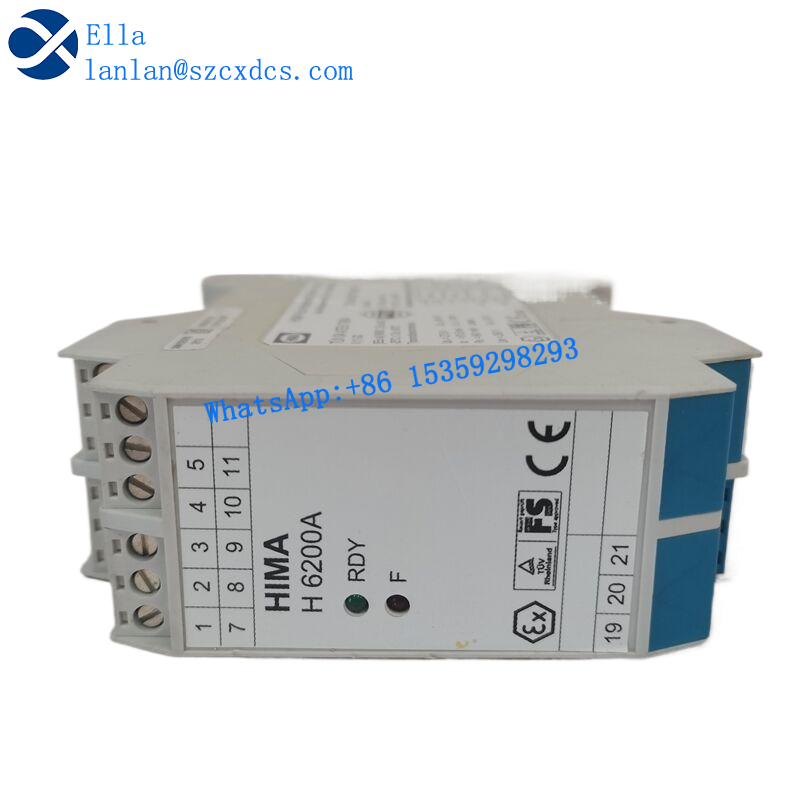

HIMA H6200A is an analog signal isolator/transmitter designed for industrial automation safety systems. It is capable of converting analog signals such as voltage, resistance, thermocouple, or RTD from field sensors into standard 4-20mA current loop outputs and supports the HART communication protocol for remote parameter configuration and diagnosis. H6200A complies with functional safety standards such as IEC 61508, EN ISO 13849, EN 62061, and can be selected with Ex d/Ex ia explosion-proof rating, suitable for process control and monitoring in hazardous areas.
Input signals: Supports voltage (0-10 V, 0-5 V, etc.), resistance (0-500 Ω, 0-1 k Ω, etc.), thermocouple (J, K, T, E, etc.), and RTD (Pt100, Pt1000)
Output signal: 4-20 mA two-wire current loop, load capacity of 250 Ω (24 VDC) or up to 500 Ω (higher supply voltage required)
Power supply: 12-32 VDC (typical 24 VDC), power consumption<1 W
Accuracy/Linearity: Accuracy ± 0.1% FS, Linearity ≤ 0.1% FS, Temperature Drift ≤ ± 50 ppm/° C (Typical)
Working environment: Temperature range -20 ° C~+70 ° C (some models are wider), protection level IP65/IP67, in compliance with EN 61000 EMC standard

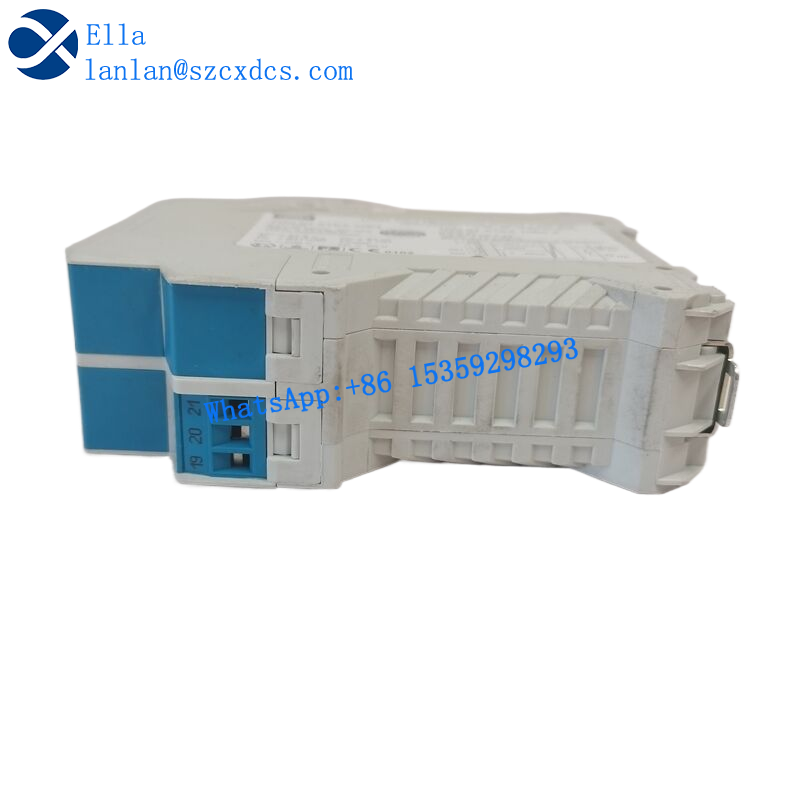

Mechanical characteristics: Stainless steel or aluminum alloy shell, DIN rail or panel installation, screw/spring terminal connection
Safety certification: IEC 61508 (SIL 2/3 depending on the model), CE， Compliant with EN 55011, EN 55022, etc
Communication interface: optional HART protocol for remote configuration, monitoring, and fault diagnosis
Display/Operation: Optional LCD display screen, supporting parameter settings and fault diagnosis
Response time: ≤ 100 ms (typical)
Explosion proof rating: optional Ex   d, Ex   ia (applicable to hazardous areas).

Product Features:
Overload protection: Both input and output have overload protection.
Dustproof and Waterproof: IP65/IP67 rating, suitable for harsh industrial environments.

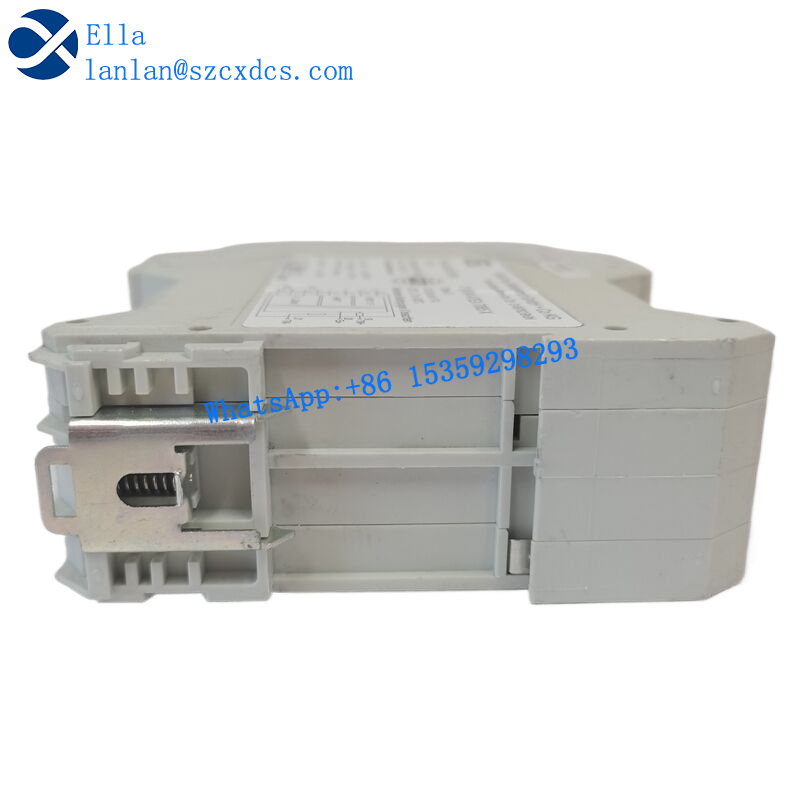

Flexible installation: H6200A supports DIN rail and panel installation, with screw or spring terminals for easy on-site wiring.
Convenient maintenance: Provides global technical support and spare parts services, and recommends regular inspection and calibration of I/O signals.

Category: Industrial Control Module
Sold to: Global
Scope of application: Steel plants/thermal power plants/tire plants/water plants, etc
