PCS6000 | 3BHE060156R0001 | ABB Industrial power conversion system

ABB PCS6000 is an advanced power conversion system designed to improve operational efficiency in various industrial applications. It adopts advanced control algorithms to ensure minimal energy loss and has a modular design that makes it easy to expand and maintain. The system also has multiple built-in protection functions, such as overvoltage, overload, and short circuit protection, to improve operational safety.

FEATURES：
High efficiency: PCS6000 3BHE060156R0001 adopts advanced control algorithms, with a system efficiency of over 98%, greatly reducing harmonic pollution to the power grid and improving energy conversion efficiency.

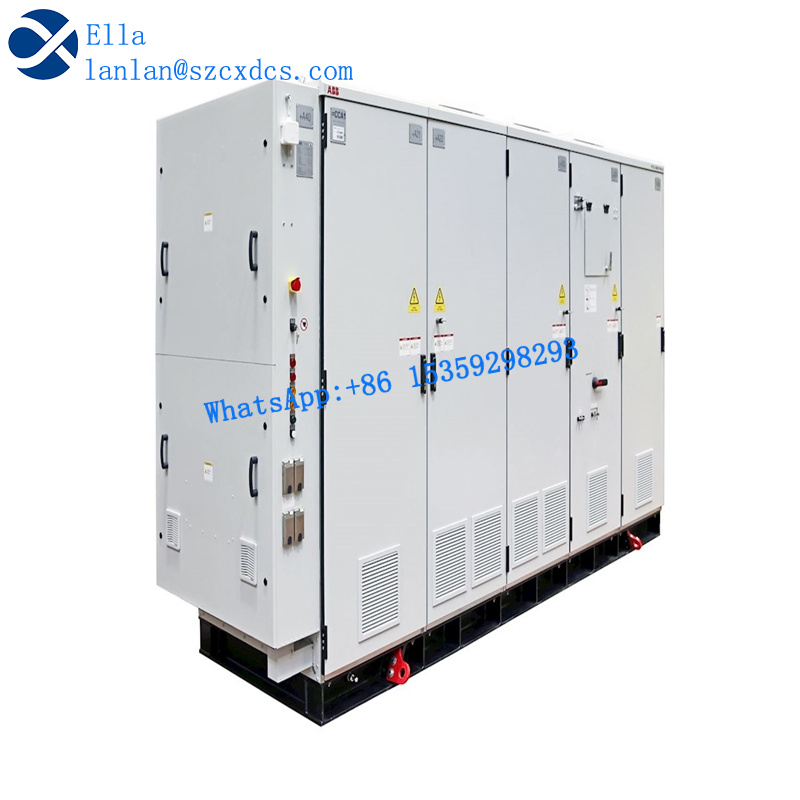

Modular design: The product family adopts modular design, with standardized interfaces between components, supporting flexible configuration and power expansion. For example, in large photovoltaic power plants, multiple PCS6000 grid connected inverters can be operated in parallel to meet the needs of power plants with different capacities.
Strong adaptability and scalability: The product family adopts modular design, with standardized interfaces between components, supporting flexible configuration and power expansion. For example, in large photovoltaic power plants, multiple PCS6000 grid connected inverters can be operated in parallel to meet the needs of power plants with different capacities; When the system needs to be upgraded, only the corresponding power modules or controllers need to be replaced or added, without the need to reconstruct the entire system, reducing the upgrade cost.
Accurate control performance: The high-speed computing capability of the controller and advanced control algorithms (such as model predictive control) ensure the stability and accuracy of the inverter output. In energy storage systems, precise control of charging and discharging currents and voltages can be achieved, enabling refined management of batteries and extending their lifespan; In industrial transmission, high-precision speed and torque control of motors can be achieved to meet the requirements of precision machining equipment.
High reliability and safety: The entire range of PCS6000 products has passed strict industrial certifications (such as IEC and UL standards), possessing characteristics such as anti electromagnetic interference, anti vibration, and anti-corrosion, and can adapt to harsh industrial environments. The power module and controller both adopt redundant design. When a component fails, the redundant component can automatically switch to ensure uninterrupted operation of the system; Meanwhile, a comprehensive protection mechanism can quickly respond to faults, preventing equipment damage and safety accidents from occurring.

Application Cases：
Offshore wind power: PCS6000 is suitable for offshore wind farms, supporting a power range of up to 12MW, and is suitable for ultra large wind turbines. Its modular design enables it to adapt to different wind turbine configurations and has passed CGC product certification, becoming the first certified medium to high voltage wind power converter in the Chinese market.
Industrial Automation: In the field of industrial automation, 3BHE060156R0001 PCS6000 provides high-precision motor control and flexible power regulation capabilities, suitable for various industrial equipment such as rolling mills, compressors, etc.
Rail Transit: In the field of rail transit, PCS6000 is used to drive the main motor of trains, providing high-efficiency and high reliability power output.

More models：

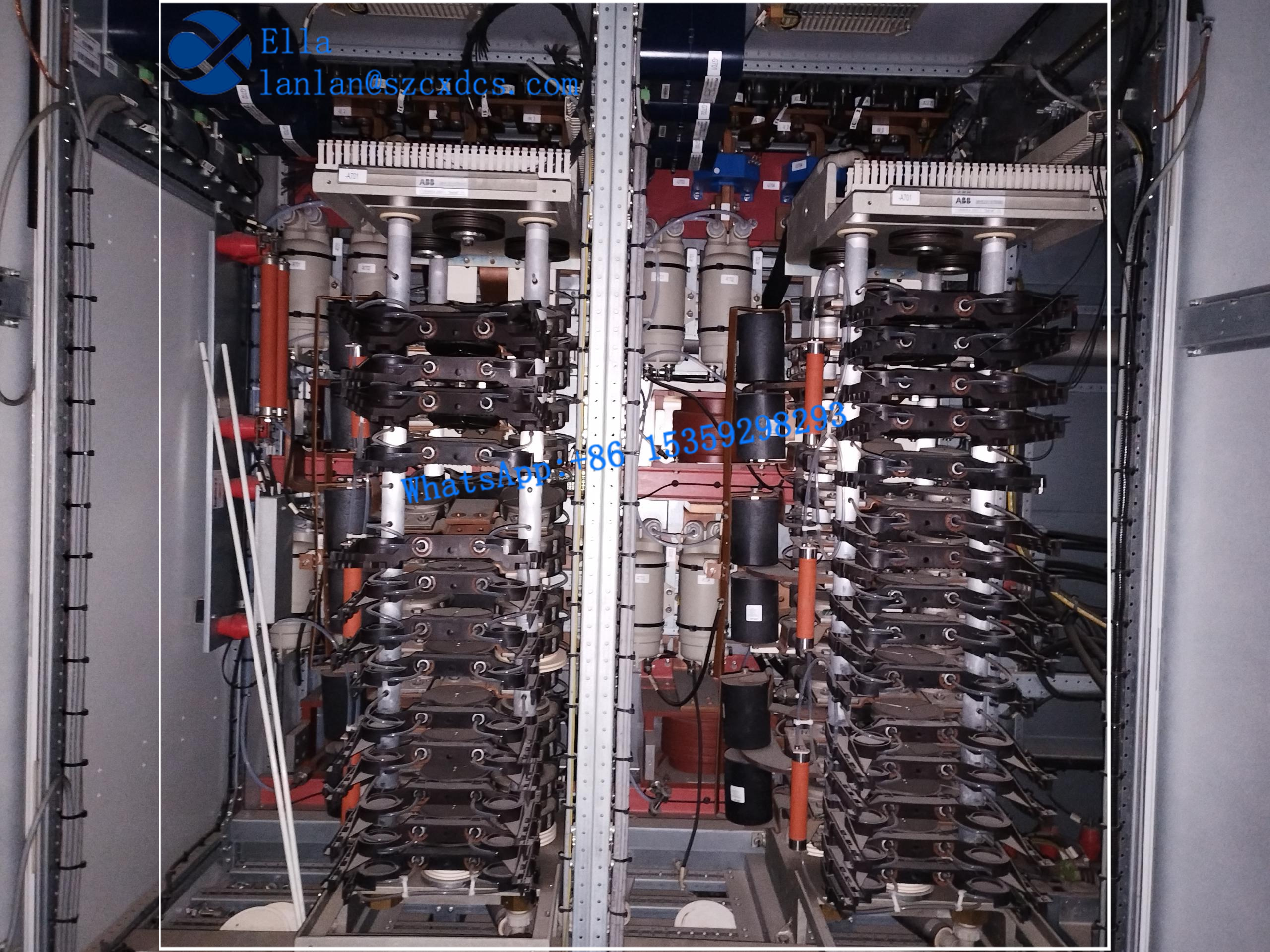

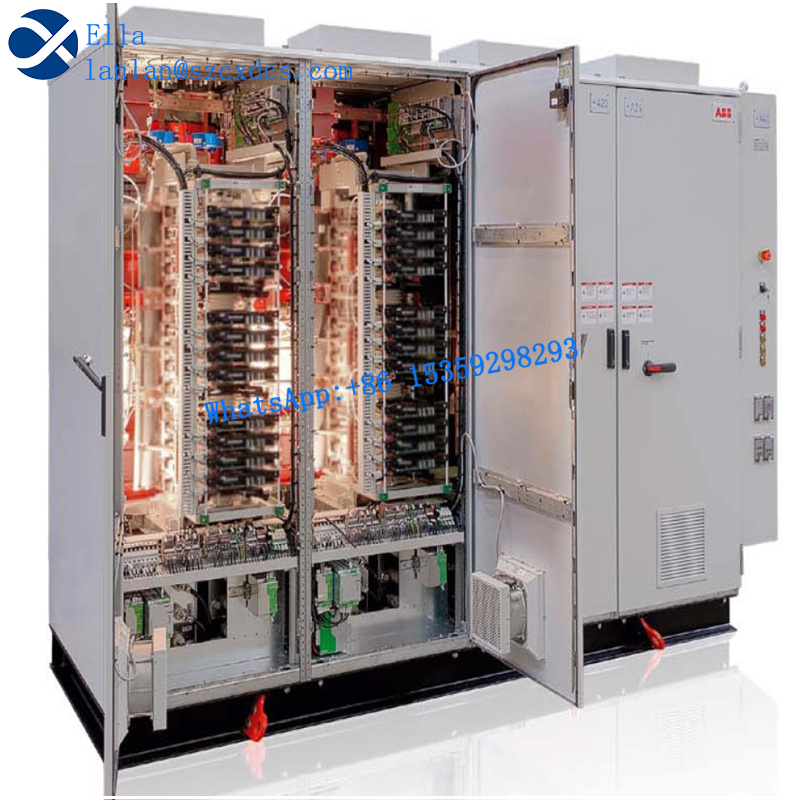

ABB PCS6000

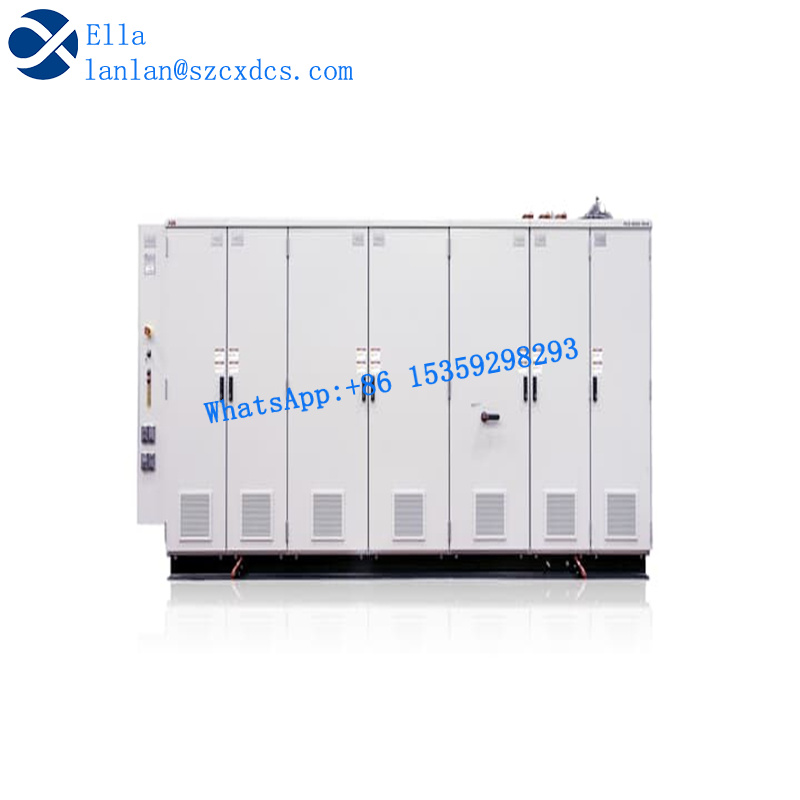

ABB PCS6000 3BHE060156R0001

3BHE031197R0001 3BHB030310R0001

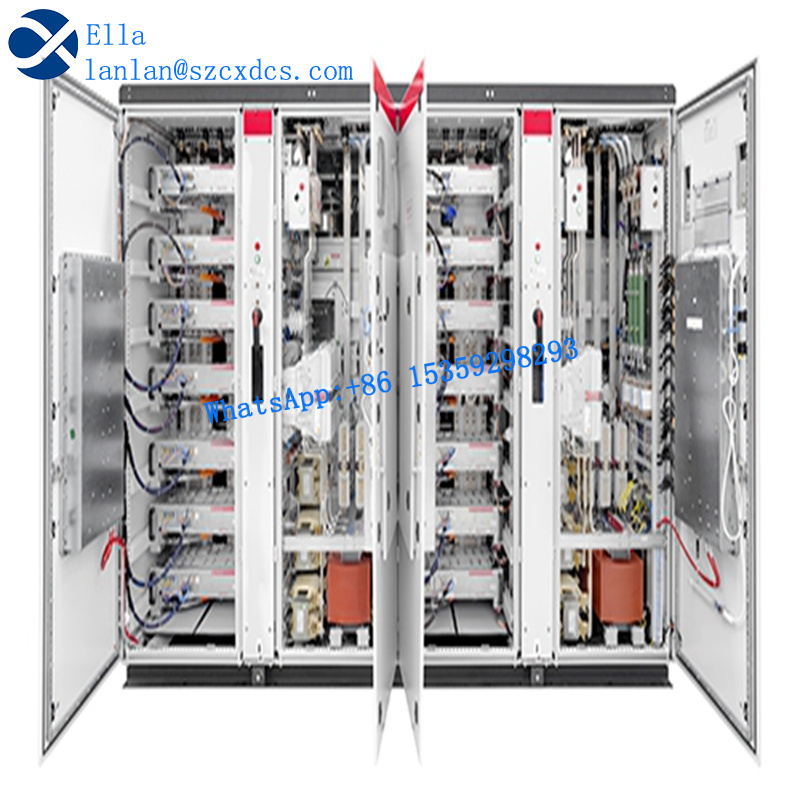

ABB GRID BREAKER UNIT GBU72 3BHE055094R0002 3BHE031197R0001 3BHB030310R0001
