Woodward 8404-205 ProAct Gen1 PISC Integrated Analog Electric Executive
| Brand: Woodward |
| Item NO: 8404-205 |
| Effect: Power generation, ship power, industrial internal combustion engine fuel supply/intake throttle control |
| Condition: In stock, brand new/Used |
| Warranty: 365 days |
| Payment:T/T 50% deposit, 50% balance |
| www.szcxdcs.com |
+86 15359298293
Woodward 8404-205 ProAct Gen1 PISC Integrated Analog Electric Executive

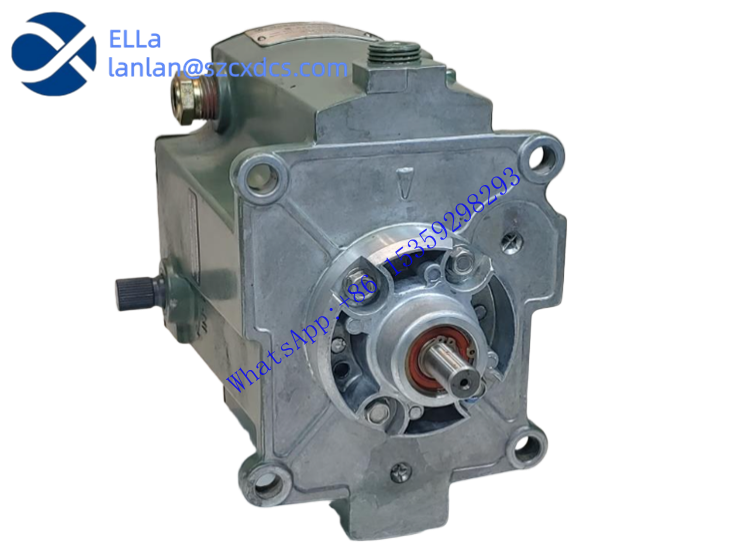

8404-205 belongs to the Woodward ProAct Gen1 PISC integrated analog electric actuator. The 8404-205 is an integrated drive circuit board, limit torque motor, and mechanical output mechanism. It is a speed control actuator for generator sets, gas internal combustion engines, and small industrial turbine units, and can be directly used with Woodward speed controllers such as 2301D and 723PLUS. It is widely used in power generation, marine power, and industrial internal combustion engine fuel supply/intake throttling control scenarios.
————————Shenzhen Changxin Automation Equipment Co Ltd -————————
Products that have been released are welcome for consultation. Due to the wide variety of models, we were unable to upload physical images one by one!
8404-205 core function
- Accurate driving of fuel/intake valves
Receive 4-20mA analog control signals from the speed controller, output rotational torque to drive the fuel rack, gas throttle valve, and intake baffle, adjust the engine intake and fuel supply by changing the medium flow cross-sectional area, and stabilize the unit speed and output power. - Closed loop position feedback adjustment
Built in high-precision potentiometer position feedback component, real-time acquisition of actual output shaft angle and feedback to the controller, forming a fully closed-loop positioning control, eliminating position deviation caused by load fluctuations, and ensuring speed regulation accuracy. - Extreme mechanical limit protection
Equipped with a bidirectional mechanical stop structure, it limits the maximum rotation stroke of the output shaft, avoiding valve overtravel jamming and mechanical component overload damage. At the same time, it is equipped with dual protection of electrical soft limit. - Fault monitoring and signal feedback
Real time monitoring of power supply abnormalities, drive overload, and position feedback disconnection faults. Abnormal signals can be uploaded to the control system and coordinated with external alarm circuits to achieve fault shutdown and alarm prompts.
Woodward 8404-205 ProAct Gen1 PISC Integrated Analog Electric Executive
Parameter Specifications
| Item | Specification |
|---|---|
| Model | 8404-205 |
| Product Series | ProAct Gen1 PISC Integrated Analog Actuator |
| Drive Type | Limited Angle Torque (LAT) rotary motor |
| Nominal Power Supply | 24 VDC, operating range 18–32 VDC |
| Control Input Signal | 4–20 mA analog position command |
| Position Feedback | Built-in potentiometer position sensor |
| Mechanical Rotation Stroke | 60° full travel angle |
| Full Stroke Response Time | 50–100 ms |
| Output Torque | 0.42 N·m rated torque |
| Power Consumption | 12–22 W depends on mechanical load |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +100 °C |
| Ambient Humidity | 5%–95% RH, non-condensing |
| Vibration & Shock Standard | MIL-STD-810 compliant |
| Housing Material | Cast aluminum alloy sealed enclosure |
| Net Weight | 2.8 kg |
| Single Carton Shipping Weight | 3.3 kg |
| Overall Dimension | 290 mm × 190 mm × 60 mm |
| Ingress Protection | IP54 for engine room installation |
| EOL Status | Original production stopped in 2018 |
| Replacement Series | 8404-3XX Gen3 FLEX actuator series |
| Certifications | CE, UL industrial compliance |
